| ブランド名: | 1 |
| モデル番号: | NF103A |
| MOQ: | 1 |
| 価格: | 2000$ |
| 支払条件: | L/C,D/P,T/T,Western Union |
| 供給能力: | 500/month |
| Attribute | Value |
|---|---|
| North seeking accuracy | ±0.5° |
| Pitch accuracy | ±0.1° |
| Roll angle accuracy | ±0.1° |
| Tilt adaptability | ±15° |
| Overall dimensions | 135×135×85mm |
| Weight | ≤1500g |
| Heading angle tracking measurement accuracy | 0.5° (5min) |

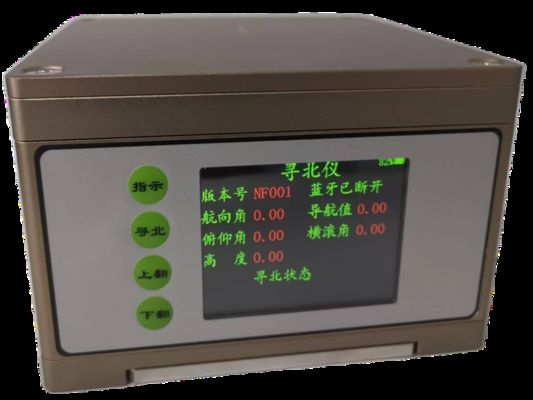

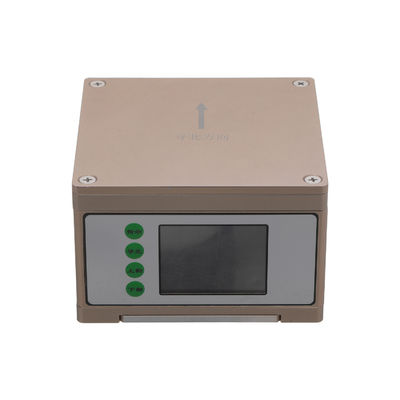

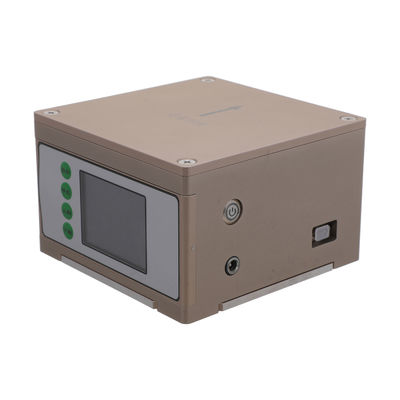

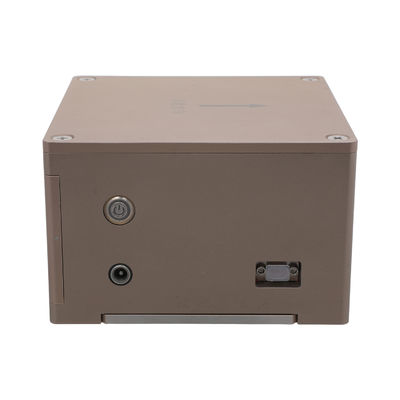

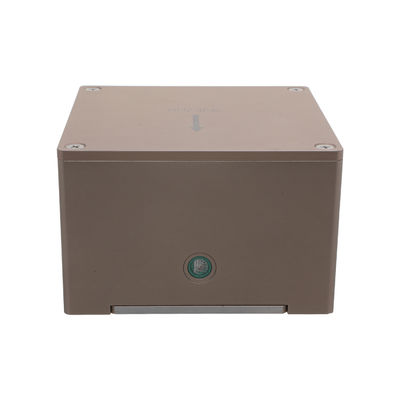

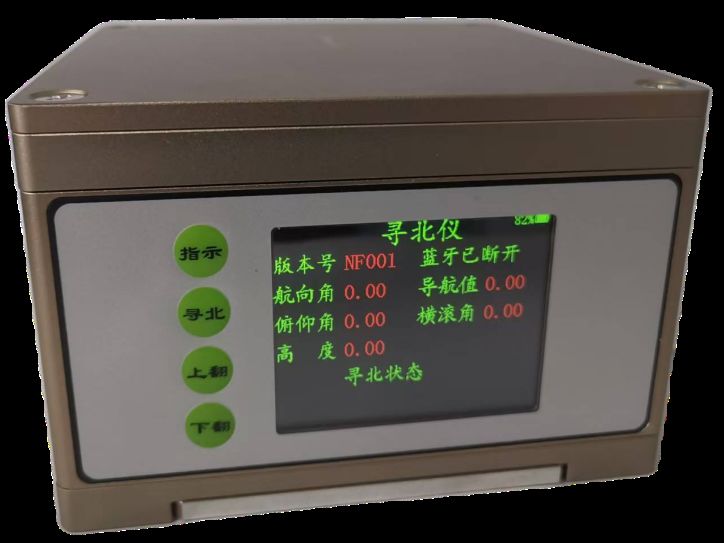

This commercial-grade digital compass north finder features a screen display for mapping applications. Designed for professional use, it combines rich features with portability, including a built-in explosion-proof battery. Industrial grade models offer compact size, lightweight construction, and low power consumption.
| Project | Unit | Commercial Grade NF-103A | Commercial Grade NF-103B | Industrial Grade NF-102A | Industrial Grade NF-102B |
|---|---|---|---|---|---|
| Communication mode | Screen display/mobile phone APP/upper computer software RS422/RS485 | RS422/RS232 | |||
| Connector | J30JM-9ZKP | J30JM-9ZKP | J30JM-15ZKP | J30JM-15ZKP | |
| Power consumption (with laser indication) | W | ≤3 | ≤3 | ||
| Power consumption (without laser indication) | W | ≤1.2 | ≤1.2 | ≤1 | ≤1 |
| Power supply | V | Standby for 18h with explosion-proof battery | DC9V~26V | DC9V~26V | |
| Operating temperature | ℃ | 0~+40 | 0~+40 | -40~+60 | -40~+60 |
| North seeking time | min | ≤3 | |||
| North seeking accuracy | ° | ±0.5 | ±1 | ±0.5 | ±1 |
| Pitch accuracy | ° | ±0.1 | ±0.5 | ±0.1 | ±0.5 |
| Roll angle accuracy | ° | ±0.1 | ±0.5 | ±0.1 | ±0.5 |
| Tilt adaptability | ° | ±15 | |||
| Altitude measurement | m | include | include | ||
| Overall dimensions | mm | 135×135×85 | 60×60×60 | ||
| Installation dimensions | mm | 119×119 | 46×53 | ||
| Weight | g | ≤1500 | ≤1500 | ≤400 | ≤400 |
