| ブランド名: | FIREPOWER |
| モデル番号: | SIPチップ |
| MOQ: | 1 |
| 価格: | 200$ |
| 支払条件: | L/C、T/T |
| 供給能力: | サンプルのための 1 週間 |

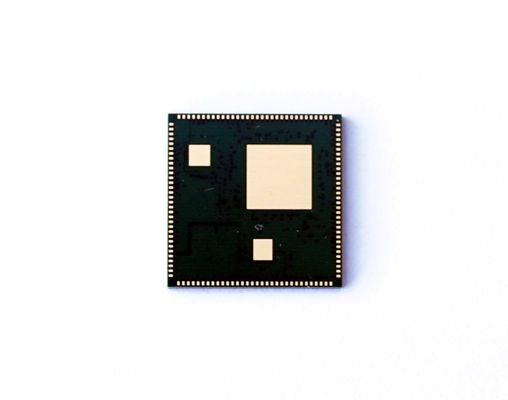

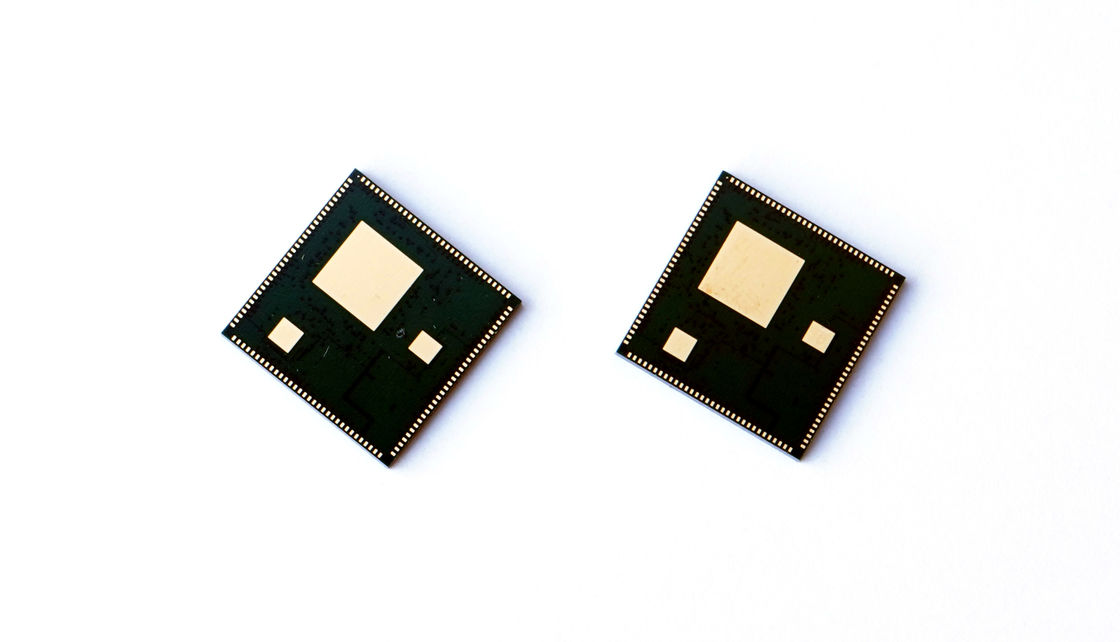

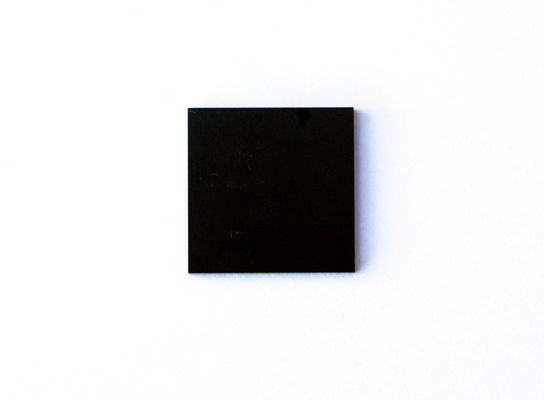

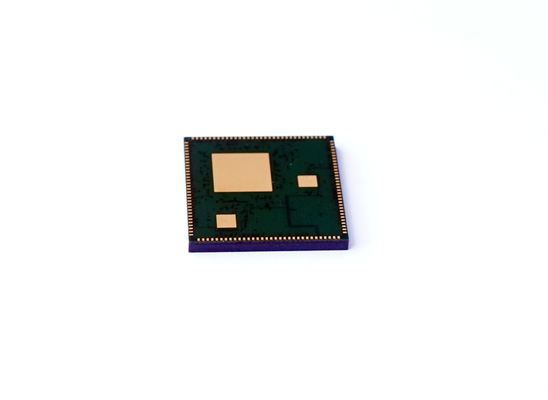

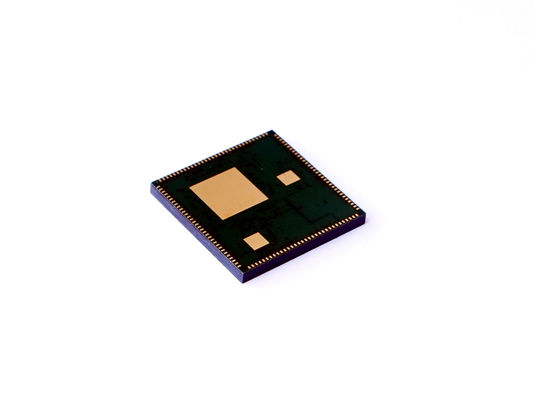

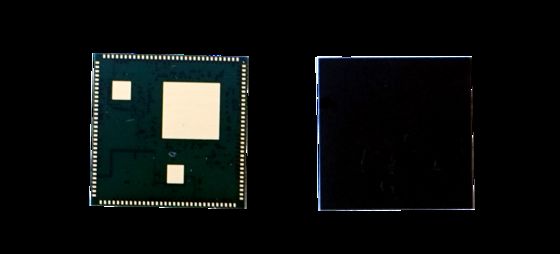

This specialized chip for fiber optic gyro control features high integration, compact size, low power consumption, and robust performance. It integrates all main chip devices required for fiber optic gyro control, suitable for gyros with accuracy below 0.5%.
The chip integrates multiple functional units:
| No. | Parameter | Specification |
|---|---|---|
| 1 | ADC Resolution | 14bit |
| 2 | ADC Max Operating Frequency | 80MHz |
| 3 | ADC Signal-to-Noise Ratio (SNR) | 60dB |
| 4 | Equivalent Input Noise | 3LSB |
| 5 | DAC Resolution | 14bit |
| 6 | DAC Max Operating Frequency | 50MHz |
| 7 | DAC Spurious-Free Dynamic Range (SFDR) | 68dB |
| 8 | Output Drive Voltage | ≥9Vpp |
| 9 | RS422 Communication Rate | ≥5MBPS |
| 10 | Standby Power Consumption | ≤0.8W |
| 11 | Dimensions | ≤12mm*12mm*2.5mm |
| 12 | Package Type | QFN |
