| ブランド名: | Firepower |
| モデル番号: | MFOG-24 |
| MOQ: | 1 |
| 価格: | 650~740USD |
| 支払条件: | LC、T/T |
| 供給能力: | 500/月 |

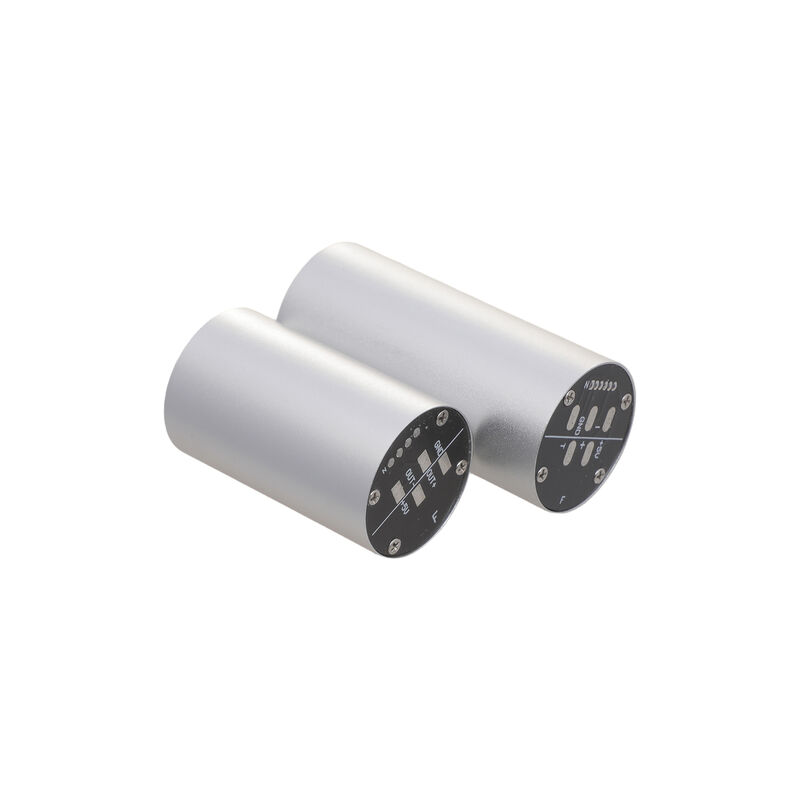

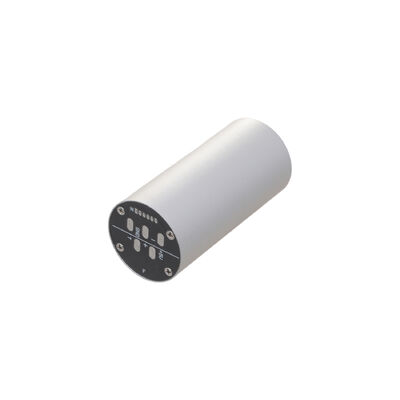

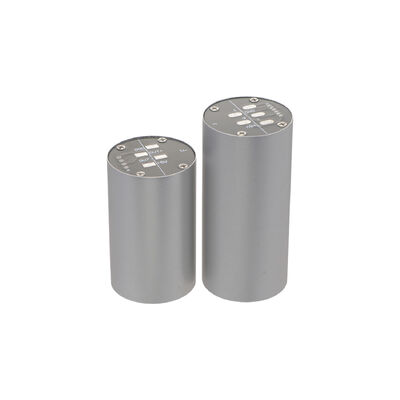

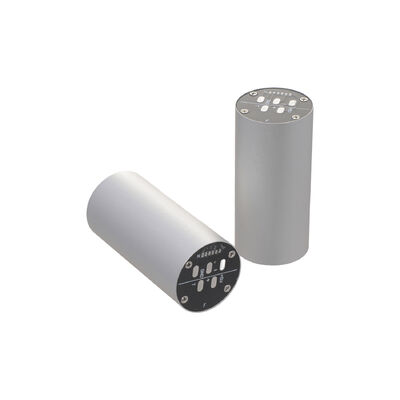

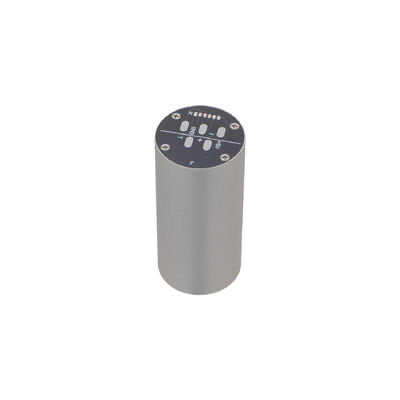

Designed for demanding environments, the MFOG-24 is rugged, lightweight, and highly resistant to shock and vibration. With no moving parts, it delivers reliable performance and long service life.
| Serial Number | Project | MFOG-24 | MFOG-24-AN | |
|---|---|---|---|---|
| 1 | Range (°/s) | ±500 | ±300 | |
| 2 | Scale Factor | 3600 (LSB/o/s) | 7mv/o/s | |
| 3 | Scale Factor Nonlinearity (ppm) | 300 | ≤1000 | |
| 4 | Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 | |
| 5 | Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 | |
| 6 | Angular Random Walk (°/h 1/2) | ≤0.03 | ≤0.04 | |
| 7 | Zero Bias (°/s) | ≤0.02 | ≤0.05 | |
| 8 | 3dB Band Width (Hz) | ≥300 | ≥450 | |
| 9 | Power Supply (V) | 5+0.15 | 5+0.15 | |
| 10 | Power Consumption (W) | ≤1.5 | ≤0.7 | |
| 11 | Dimension (mm) | φ24X39 |
