| ブランド名: | Firepower |
| モデル番号: | MFOG-1703 |
| MOQ: | 1 |
| 価格: | 700USD |
| 支払条件: | LC、T/T |
| 供給能力: | 500/月 |

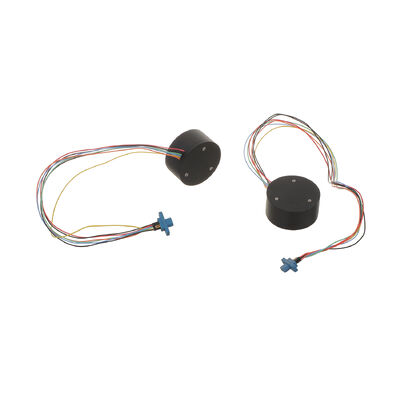

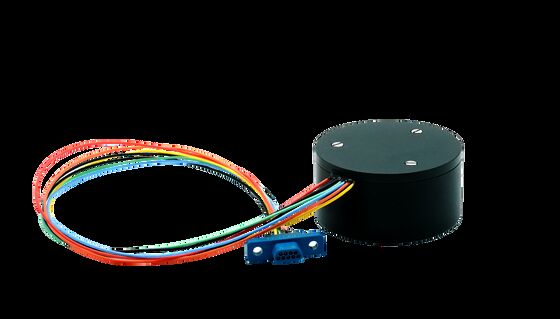

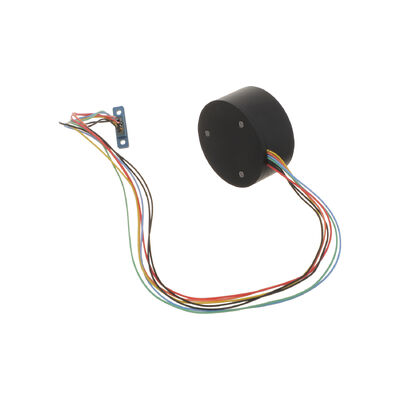

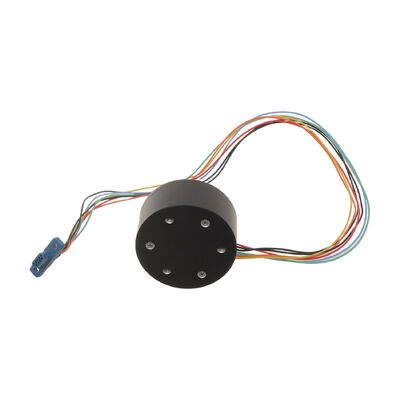

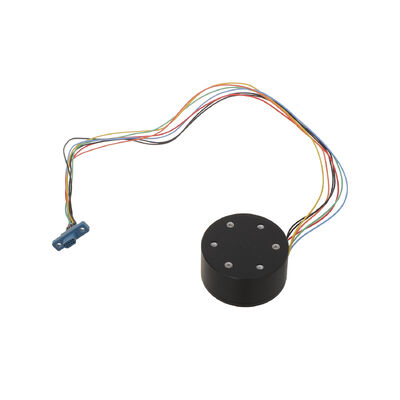

The MFOG-1703 is a micro-nano fiber optic gyroscope designed as a direct replacement for the Fizoptika VG1703. This angular rate sensor utilizes the Sagnac effect and integrates optical path assemblies, signal processing circuits, and precision structural components.
With no mechanical moving parts, this gyroscope delivers exceptional stability, high shock and vibration resistance, and rapid power-on performance, making it ideal for harsh environments and long-term operation.
| Serial Number | Project | Performance Indicators |
|---|---|---|
| 1 | Range (°/s) | ±150 |
| 2 | Scale Factor (mV/°/s) | 12±1.2 |
| 3 | Zero-bias Stability (10s, 1σ, °/h) | ≤1 |
| 4 | Zero-bias Repeatability (1σ, °/h) | ≤1 |
| 5 | Angular Random Walk (°/h1/2) | ≤0.02 |
| 6 | Zero-bias Temperature Sensitivity (μV/°C) | ≤1 |
| 7 | Scale Factor Temperature Sensitivity (ppm/°C) | ≤300 |
| 8 | 3dB Bandwidth (Hz) | ≥450 |
| 9 | Impact (g) | 1200, 1ms, half sine |
| 10 | Power Supply (V) | 5 ± 0.25 |
| 11 | Power Consumption (W) | ≤1 |
| 12 | Dimension (mm) | φ40 * 20 |
