| ブランド名: | Firepower |
| モデル番号: | MFOG-40 |
| MOQ: | 1 |
| 価格: | 700$ |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給能力: | 500/月 |

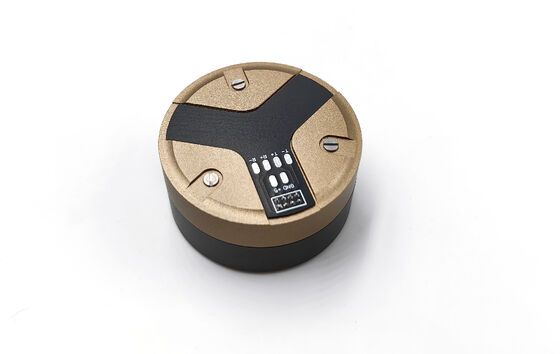

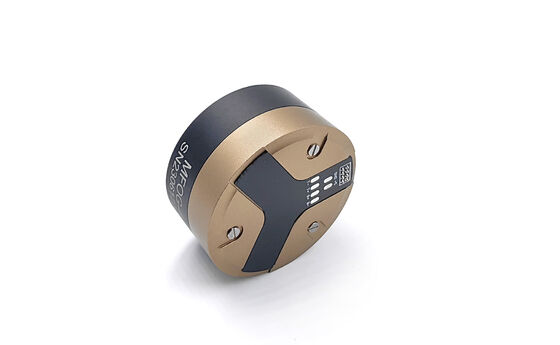

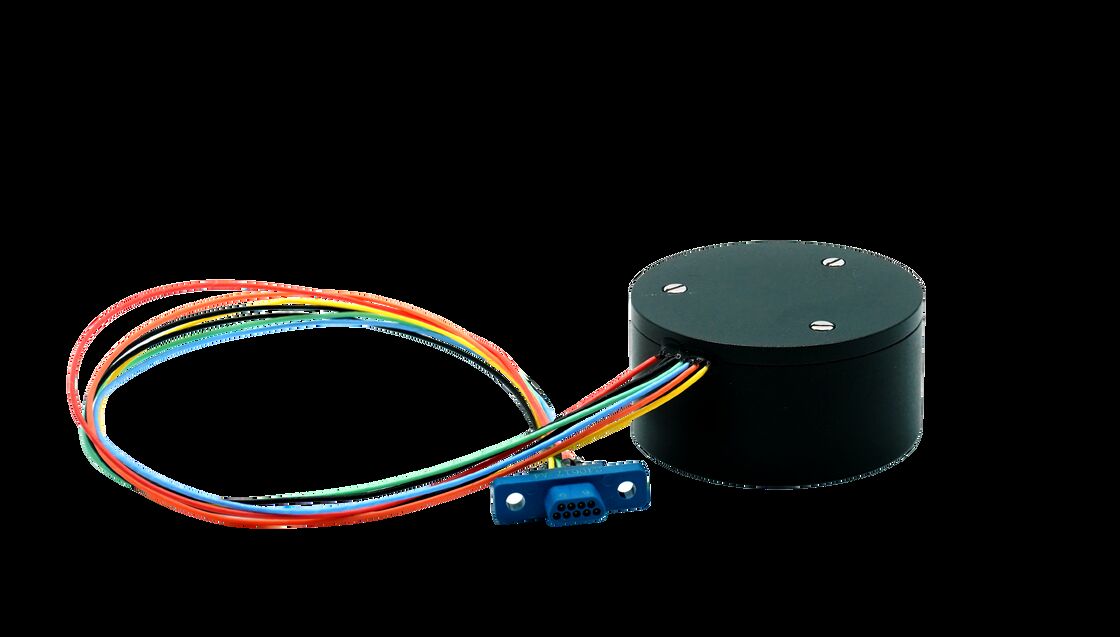

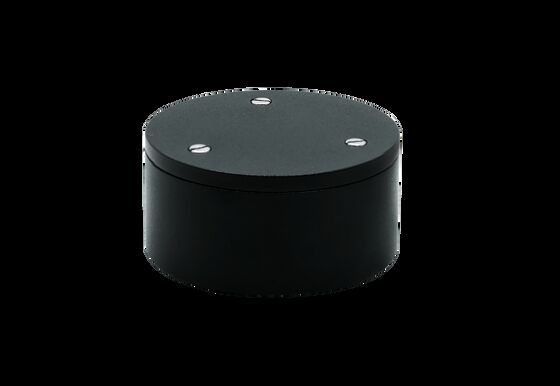

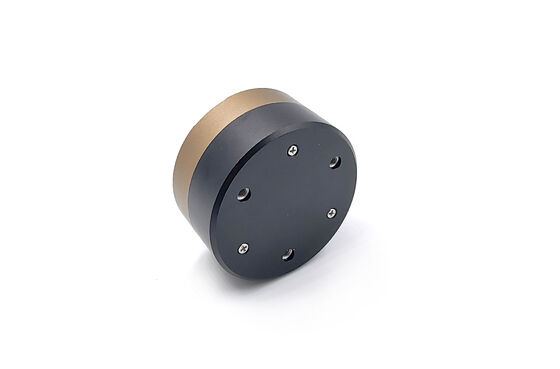

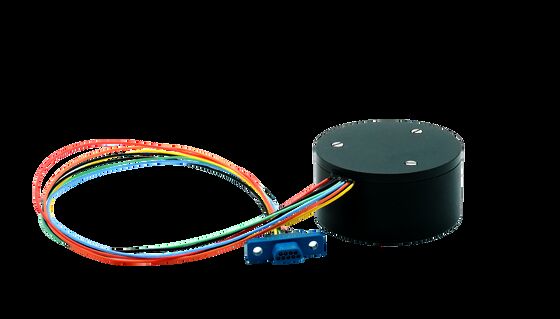

This micro-nano fiber optic gyroscope integrates optical path assemblies, signal control circuits, and structural components to deliver exceptional reliability. With ≥300Hz bandwidth and low power consumption (≤1.5W), it is ideal for marine, aerospace, and land-based applications.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±300 |
| Scale Factor (LSB/°/s) | 3600 |
| Scale Factor Nonlinearity (ppm) | ≤500 |
| Zero-Bias Stability (10s, 1σ, °/H) | ≤0.8 |
| Zero-Bias Repeatability (1σ, °/H) | ≤0.8 |
| Angular Random Walk (°/H¹/²) | ≤0.02 |
| Zero-Bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H) | ≤1.5 |
| 3dB Bandwidth (Hz) | ≥300 |
| Power Supply (V) | 5+0.15 |
| Power Consumption (W) | ≤1.5 |
| Dimensions (mm) | φ40*20 |
