| ブランド名: | Firepower |
| モデル番号: | MFOG-24 |
| MOQ: | 1 |
| 価格: | 700$ |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給能力: | 500/月 |

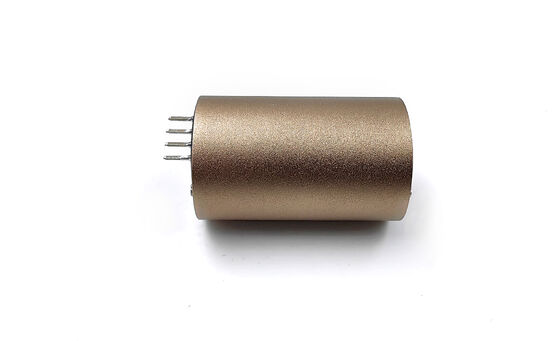

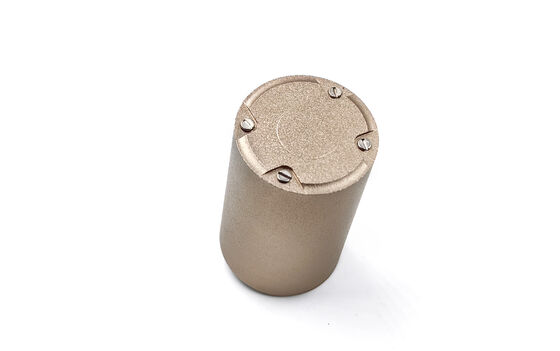

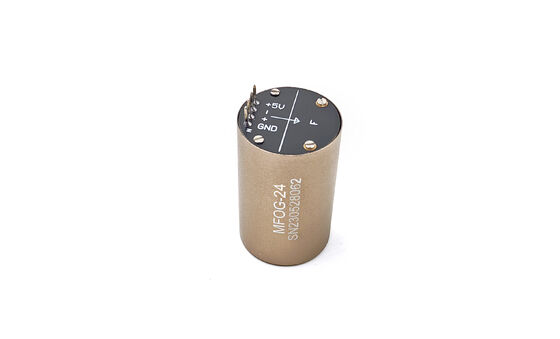

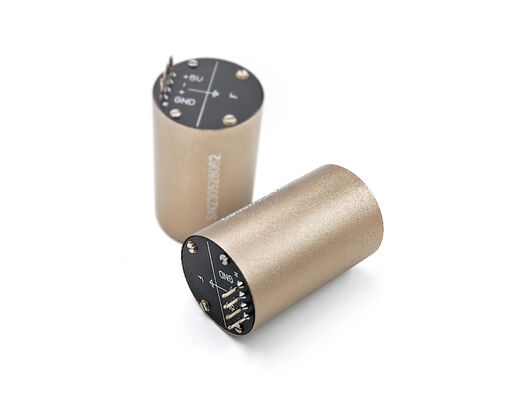

MFOG-24 Fiber Optic Gyroscope is a miniature inertial sensor integrating optical, mechanical, and electronic technologies. Utilizing the Sagnac Effect, it accurately measures angular velocity for navigation and stabilization applications.
With an operating temperature range of −40°C to +65°C and resistance to 20 g random vibration, the MFOG-24 is suitable for harsh environments such as UAVs, autonomous vehicles, and marine navigation systems.
| Serial No. | Project | MFOG-24 | MFOG-24-AN |
|---|---|---|---|
| 1 | Range (°/s) | ±500 | ±300 |
| 2 | Scale Factor | 3600 (LSB/o/s) | 7mv/o/s |
| 3 | Scale Factor Nonlinearity (ppm) | 300 | ≤1000 |
| 4 | Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| 5 | Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| 6 | Angular Random Walk (°/h 1/2) | ≤0.03 | ≤0.04 |
| 7 | Zero Bias (°/s) | ≤0.02 | ≤0.05 |
| 8 | 3dB Band Width (Hz) | ≥300 | ≥450 |
| 9 | Power Supply (V) | 5+0.15 | 5+0.15 |
| 10 | Power Consumption (W) | ≤1.5 | ≤0.7 |
| 11 | Dimension (mm) | φ24X39 | |
