| ブランド名: | Firepower |
| モデル番号: | MFOG-24 |
| MOQ: | 1 |
| 価格: | 700$ |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給能力: | 500/月 |

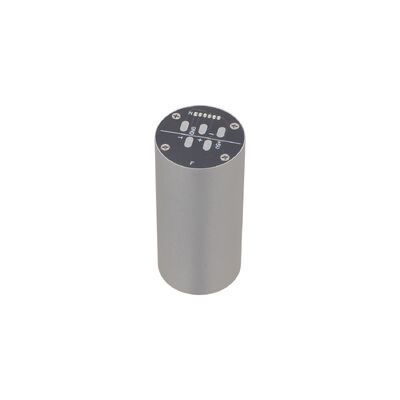

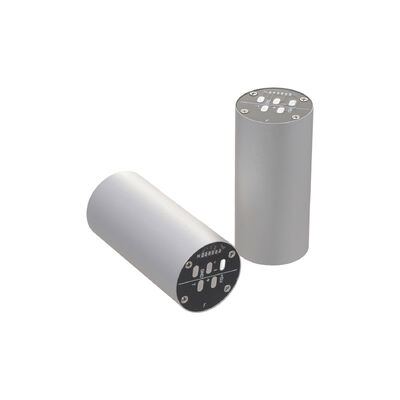

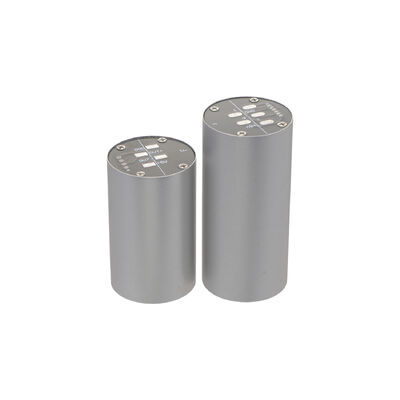

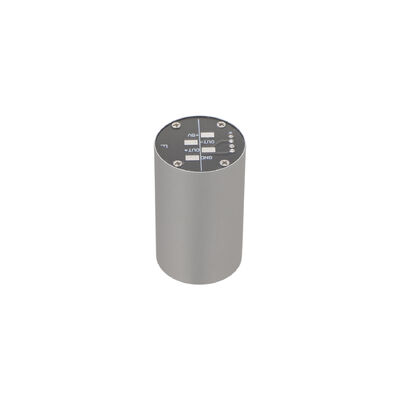

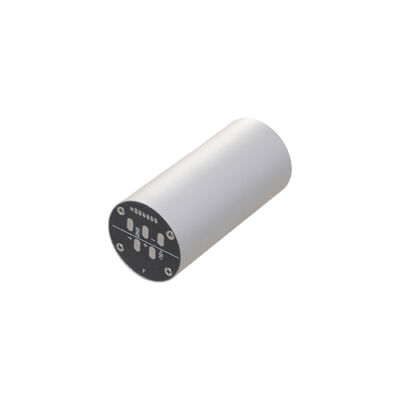

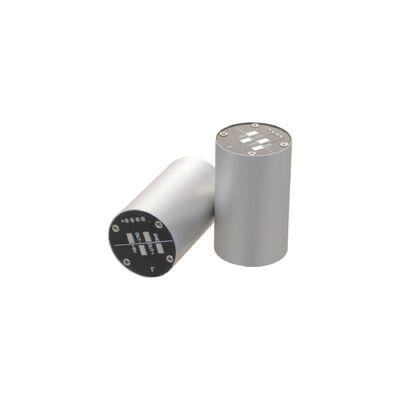

The MFOG-24 angular rate sensor delivers precise rotation measurement for navigation, stabilization, and attitude control systems. This advanced fiber optic gyroscope is engineered for demanding industrial applications requiring exceptional accuracy and reliability.
This integrated design provides high reliability, low noise, and long service life for advanced inertial systems in challenging operational environments.
| Parameter | MFOG-24 | MFOG-24-AN |
|---|---|---|
| Range (°/s) | ±500 | ±300 |
| Scale Factor | 3600 (LSB/°/s) | 7 mV/°/s |
| Scale Factor Nonlinearity (ppm) | 300 | ≤1000 |
| Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| Angular Random Walk (°/h1/2) | ≤0.03 | ≤0.04 |
| Zero Bias (°/s) | ≤0.02 | ≤0.05 |
| 3dB Bandwidth (Hz) | ≥300 | ≥450 |
| Power Supply (V) | 5±0.15 | 5±0.15 |
| Power Consumption (W) | ≤1.5 | ≤0.7 |
| Dimensions (mm) | φ24 × 39 | |
All specifications subject to standard operating conditions and may vary with environmental factors.
