| ブランド名: | Firepower |
| モデル番号: | MFOG-24 |
| MOQ: | 1 |
| 価格: | 700$ |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給能力: | 500/月 |

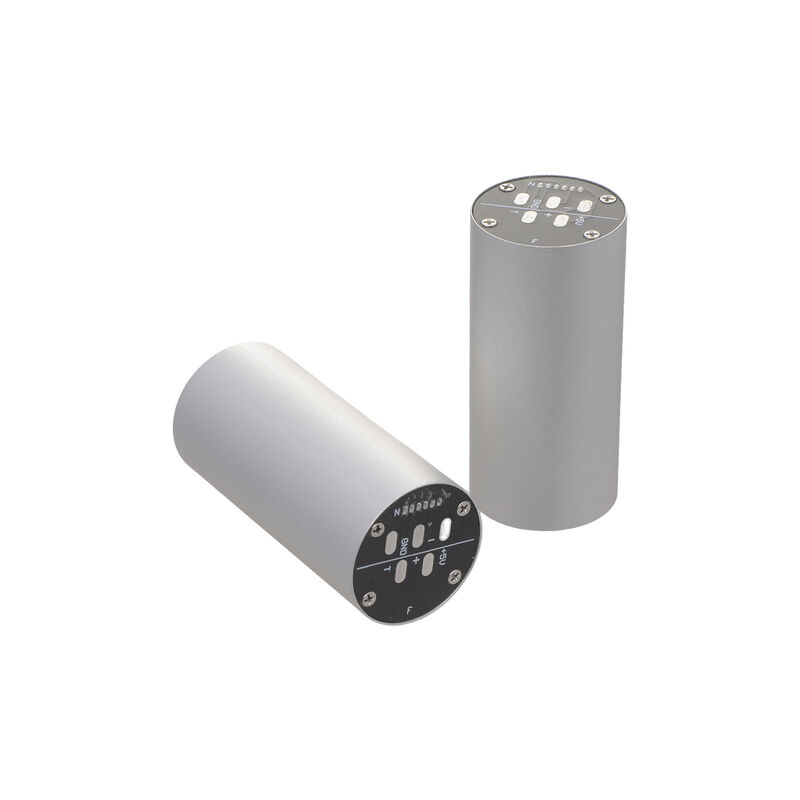

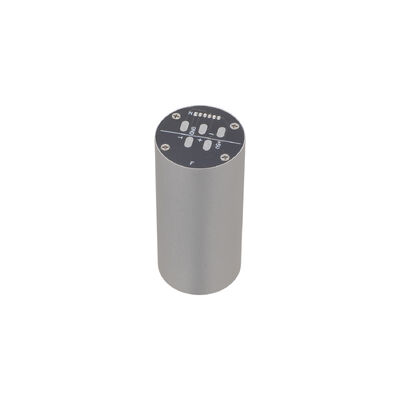

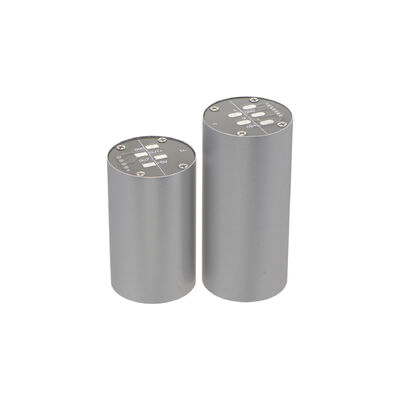

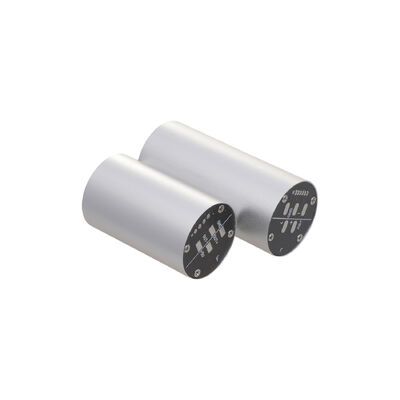

The MFOG-24 Micro FOG is engineered for precision navigation and control applications, delivering exceptional performance in demanding operational environments.
Ideal for AGV navigation systems, robotics platforms, unmanned vehicles, and autonomous control systems requiring high-accuracy orientation data.
| Parameter | MFOG-24 | MFOG-24-AN |
|---|---|---|
| Range (°/s) | ±500 | ±300 |
| Scale Factor | 3600 (LSB/°/s) | 7 mV/°/s |
| Scale Factor Nonlinearity (ppm) | 300 | ≤1000 |
| Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| Angular Random Walk (°/h)1/2 | ≤0.03 | ≤0.04 |
| Zero Bias (°/s) | ≤0.02 | ≤0.05 |
| 3dB Bandwidth (Hz) | ≥300 | ≥450 |
| Power Supply (V) | 5±0.15 | 5±0.15 |
| Power Consumption (W) | ≤1.5 | ≤0.7 |
| Dimensions (mm) | φ24 × 39 | |
