| ブランド名: | FIREPOWER |
| モデル番号: | 16488HB |
| MOQ: | 1 |
| 価格: | 600$ |
| 支払条件: | D/A、T/T |
| 供給能力: | 500/月 |

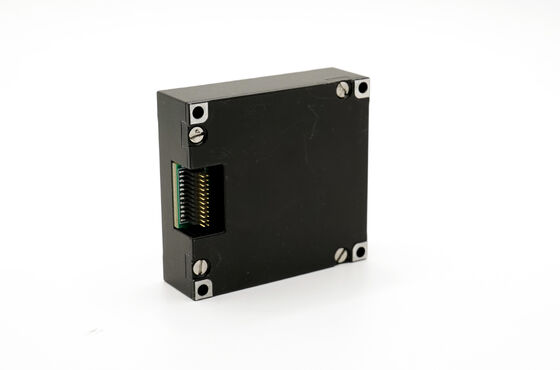

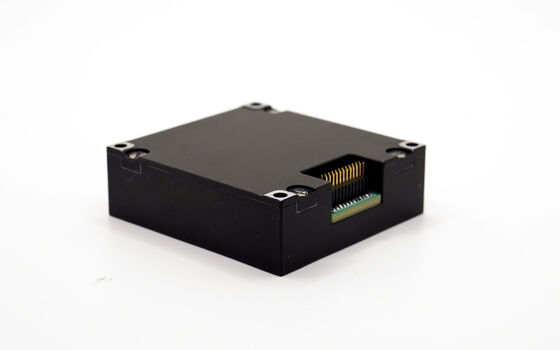

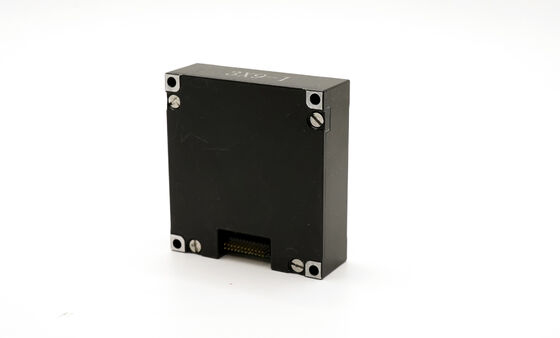

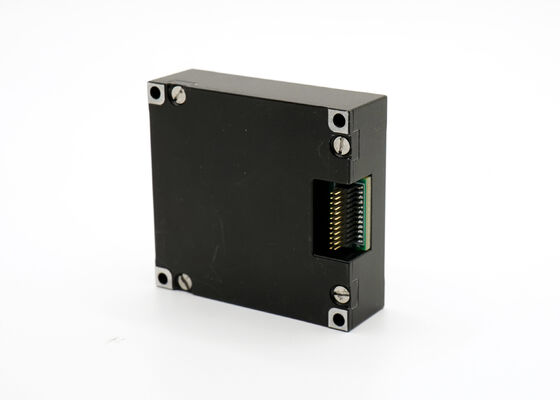

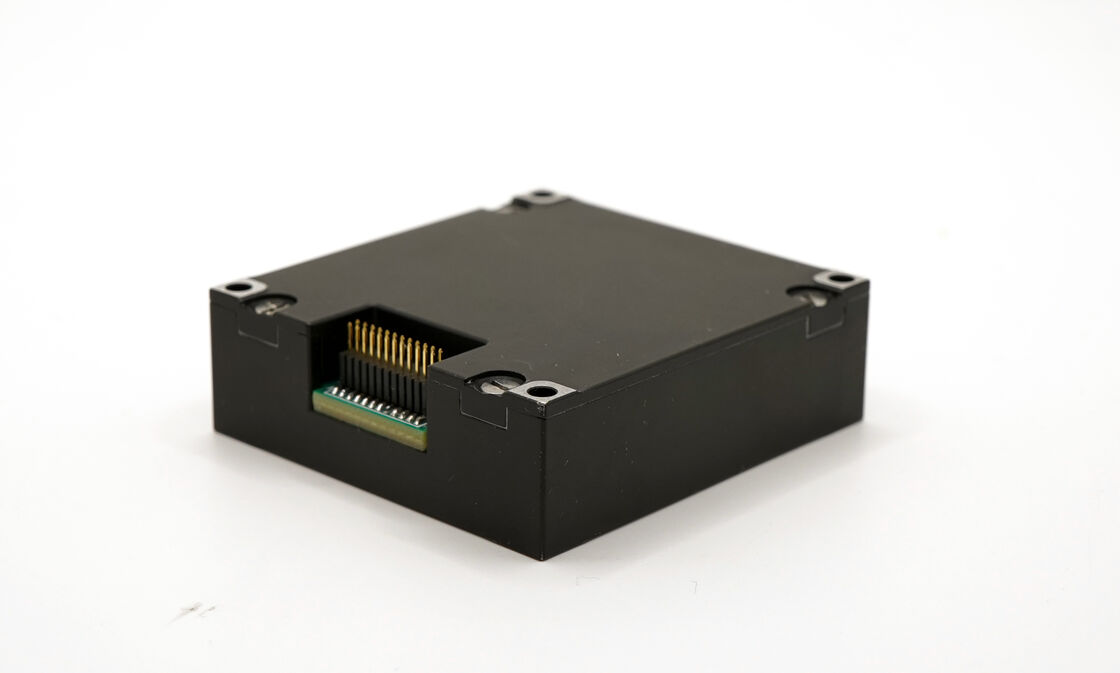

The 16488HB is a versatile MEMS inertial measurement unit designed to deliver accurate 3-axis angular velocity and acceleration data for diverse applications. It supports SPI (2460Hz sampling) and CAN (200Hz sampling) interfaces, with a compact size of 47×44×14mm and weight of 50g. Its high environmental adaptability makes it suitable for unmanned carriers, stabilizing platforms, and mobile communication systems.
| Parameter | Test Conditions | Minimum | Typical | Maximum | Unit |
|---|---|---|---|---|---|
| Gyroscope | |||||
| Dynamic measuring range | 500 | 2000 | °/s | ||
| Zero bias stability | Allan variance, Z-axis | 0.8 | °/h | ||
| Zero bias stability | Allan variance, X and Y axis | 1.6 | °/h | ||
| Zero bias stability | 10s average (-40℃~+70℃, constant temperature), Z-axis | 3 | °/h | ||
| Zero bias stability | 10s average (-40℃~+70℃, constant temperature), X-axis and Y-axis | 6 | °/h | ||
| Scale factor accuracy | Z-axis | 0.3 | % | ||
| Scale factor accuracy | X and Y Axis | 0.6 | % | ||
| Angular random walk | 0.15 | °/√hr | |||
| Bandwidth | 200 | Hz | |||
| Accelerometer | |||||
| Dynamic measuring range | 16 | 200 | g | ||
| Zero bias stability | Allan variance | 0.06 | mg | ||
| Scale factor accuracy | 0.5 | % | |||
| Bandwidth | 200 | Hz | |||
| Magnetometer | |||||
| Magnetic field range | Brg,xy | ±13 | gauss | ||
| Magnetic field range | Brg,z | ±25 | gauss | ||
| Heading accuracy | 30μT horizontal geomagnetic component, 25℃ | ±2.5 | deg | ||
| Electrical Characteristics | |||||
| Voltage | 3.0 | 3.3 | 3.6 | V | |
| Power consumption | 1.5 | W | |||
| Settling time | From 0V to 3.3V | 80 | ms | ||
| Structural Characteristics | |||||
| Size | 47×44×14 | mm | |||
| Weight | 50 | g | |||
| Use Environment | |||||
| Operating temperature | -40 | 70 | ℃ | ||
| Vibration | 20~2000Hz, 6.06g | ||||
| Impact | 1000g, 0.5ms | ||||
| Reliability | |||||
| MTBF | 20000 | h | |||
| Continuous working time | 120 | h | |||
