| ブランド名: | Firepower |
| モデル番号: | MGZ318HC-A1 |
| MOQ: | 1 |
| 価格: | 交渉可能 |
| 支払条件: | T/T |
| 供給能力: | 500/月 |

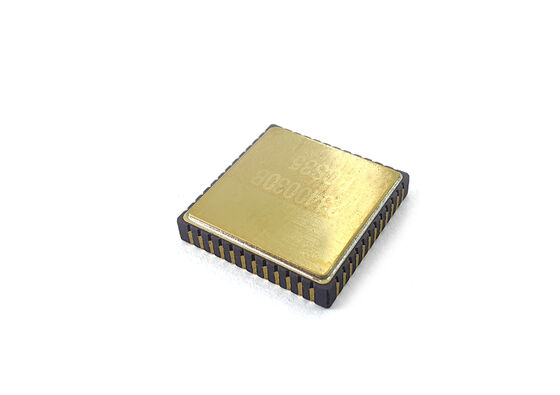

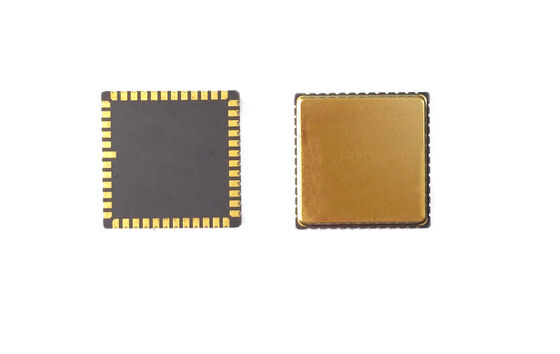

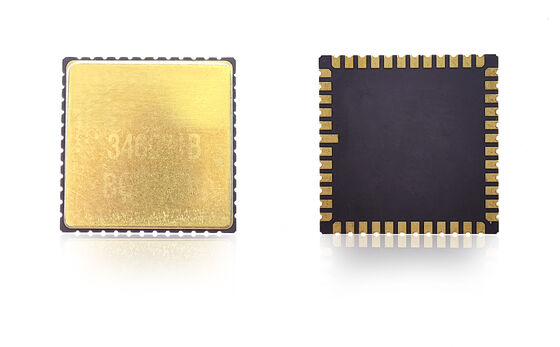

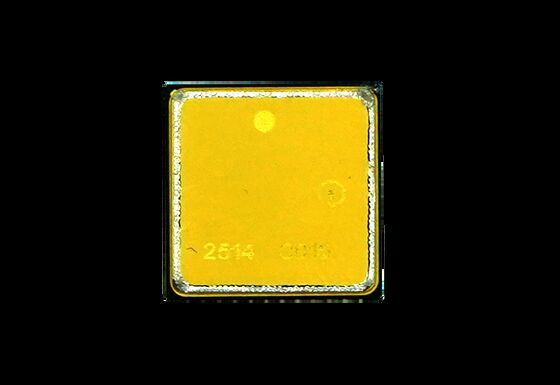

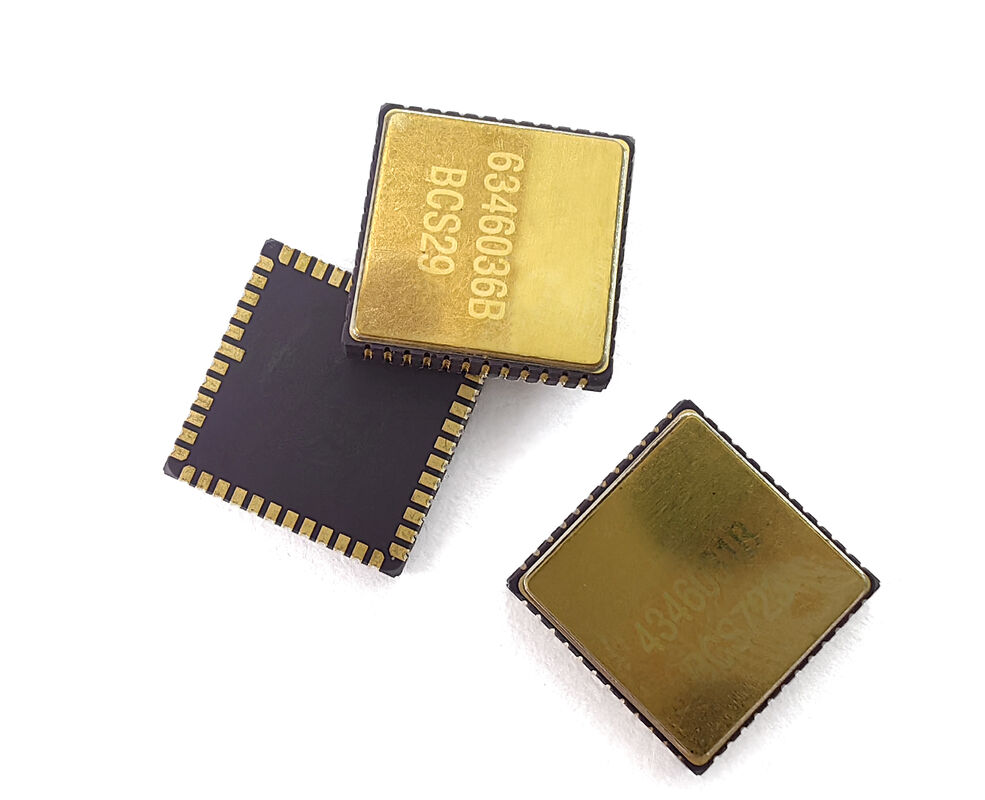

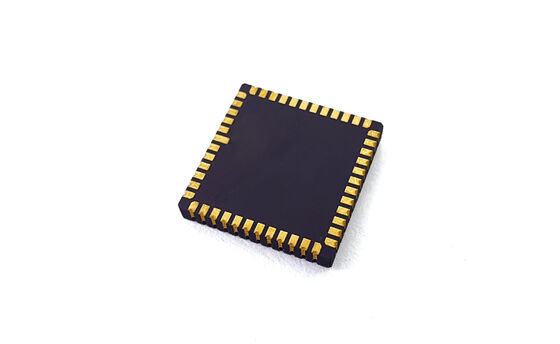

Our MEMS gyroscope chip offers high accuracy motion sensing with low power consumption and compact size. It is optimized for IMU and inertial navigation systems, delivering stable performance in dynamic conditions. With strong anti-interference capability and customizable features, it supports a wide range of industrial and commercial applications.
| Performance | Unit | MGZ332HC-P1 | MGZ332HC-P5 | MGZ318HC-A1 | MGZ221HC-A4 | MGZ330HC-O1 | MGZ330HC-A1 |
|---|---|---|---|---|---|---|---|
| Range | deg/s | 400 | 400 | 400 | 400 | 400 | 100 |
| Band Width @3DB (customized) | Hz | 90 | 180 | 200 | 200 | 300 | 50 |
| Output accuracy (digital SPI) | bits | 24 | 24 | 24 | 24 | 24 | 24 |
| Output rate (ODR) (customized) | Hz | 12K | 12K | 12K | 12K | 12K | 12K |
| Delay (customized) | ms | <3 | <1.5 | <1.5 | <1.5 | <1 | <6 |
| Bias stability | deg/hr(1σ) | <0.05 | <0.05 | <0.1 | <0.5 | <0.1 | <0.02 |
| Bias stability (1σ 10s) | deg/hr(1σ) | <0.5 | <0.5 | <1 | <5 | <1 | <0.1 |
| Bias error over temperature (1σ) | deg/hr(1σ) | <5 | <5 | <10 | <30 | 10 | 5 |
| Scale factor at 25°C | lsb/deg/s | 20000 | 20000 | 16000 | 16000 | 20000 | 80000 |
| Scale factor repeatability (1σ) | ppm(1σ) | <20ppm | <20ppm | <20ppm | <20ppm | <100ppm | <100ppm |
| Scale factor vs temperature (1σ) | ppm(1σ) | 100ppm | 100ppm | <150ppm | <150ppm | <300ppm | <300ppm |
| Scale factor non-linearity (1σ) | ppm | 100ppm | 100ppm | <150ppm | <150ppm | <300ppm | <300ppm |
| Angular random walk (ARW) | °/√h | <0.025 | <0.025 | <0.05 | <0.25 | <0.05 | <0.005 |
| Noise (Peak to Peak) | deg/s | <0.15 | <0.3 | <0.35 | <0.4 | <0.25 | <0.015 |
| G Value sensitivity | °/hr/g | <1 | <1 | <1 | <3 | <1 | <1 |
