| ブランド名: | Firepower |
| モデル番号: | MGZ332HC-P1 |
| MOQ: | 1 |
| 価格: | 交渉可能 |
| 支払条件: | T/T |
| 供給能力: | 500/月 |

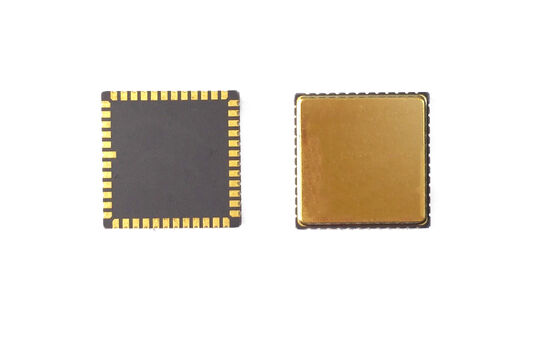

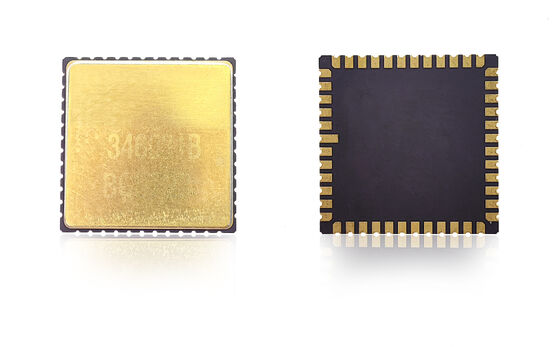

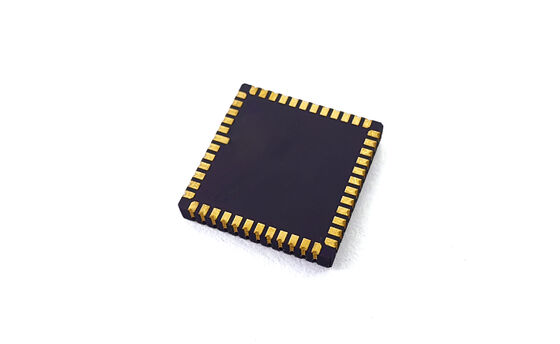

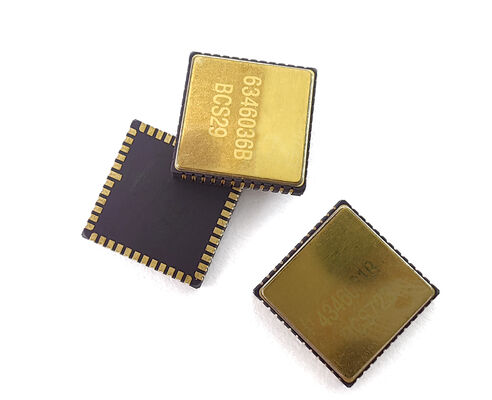

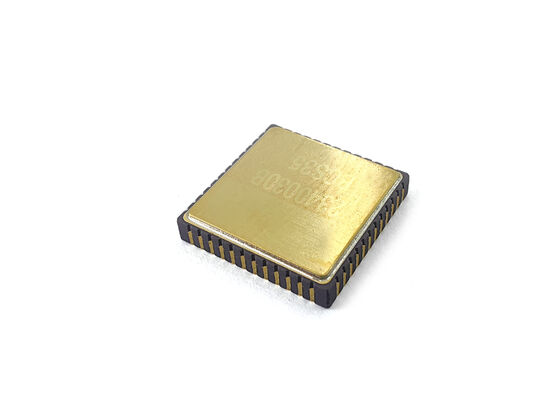

The MGZ332HC-P1 is a high-performance MEMS gyroscope chip delivering accurate and stable angular rate measurement for navigation and control systems. Featuring low noise, low drift, and excellent environmental adaptability, it is suitable for UAV flight control, inertial navigation, and industrial automation applications.
Ultra-high precision MEMS gyroscope chip with best-in-class <0.05deg/h bias stability and <0.025deg/sqrt-h angular random walk. Optimized for precision navigation systems, platform stabilization, and instrumentation applications demanding the highest accuracy.
| Parameter | Unit | MGZ332HC-P1 |
|---|---|---|
| Measuring Range | deg/s | 400°/s |
| Bandwidth (-3dB, customizable) | Hz | 90Hz |
| Output Accuracy (Digital SPI) | bits | 24 |
| Output Rate ODR (customizable) | Hz | 12K |
| Delay (customizable) | ms | <3ms |
| Bias Stability (Allan variance) | deg/h (1-sigma) | <0.05°/h |
| Bias Stability (1-sigma, 10s) | deg/h (1-sigma) | <0.5°/h |
| Angular Random Walk (ARW) | deg/sqrt-h | <0.025°/√h |
| Scale Factor at 25°C | lsb/deg/s | 20000 lsb/deg/s |
| Scale Factor Repeatability (1-sigma) | ppm (1-sigma) | <100ppm |
| Scale Factor vs Temperature (1-sigma) | ppm (1-sigma) | <300ppm |
| Scale Factor Nonlinearity (1-sigma) | ppm | <300ppm |
| Noise (Peak to Peak) | deg/s | <0.15°/s |
| G-Value Sensitivity | deg/h/g | <3 |
| Power-On Time (Valid Data) | s | 750m |
| Sensor Resonant Frequency | Hz | 10.5k-13.5K |
| Impact (Powered On) | 500g, 1ms | |
| Impact Resistance (Powered Off) | 10000g, 10ms | |
| Vibration (Powered On) | 18g RMS (20Hz-2kHz) | |
| Operating Temperature | -40°C ~ +85°C | |
| Storage Temperature | -55°C ~ +125°C | |
| Supply Voltage | 5 +/- 0.25V | |
| Current Consumption | 45mA |
The MGZ332HC-P1 MEMS gyroscope chip is packaged in anti-static ESD-safe packaging within an export-grade carton box. Firepower brand, made in China. Minimum order quantity 1 piece, sample delivery within 7 days. Bulk supply capacity 500 pieces per month. Payment terms T/T. For price inquiry or to request samples, please contact us.
