| ブランド名: | FIREPOWER |
| モデル番号: | MFOG-910 |

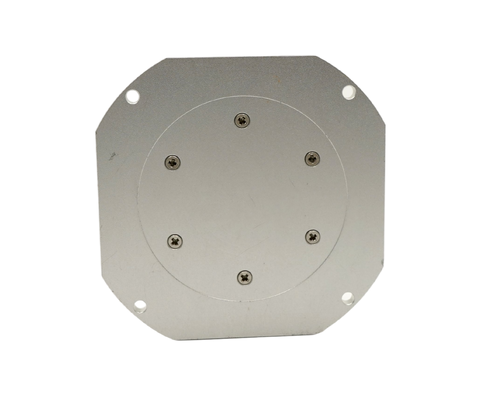

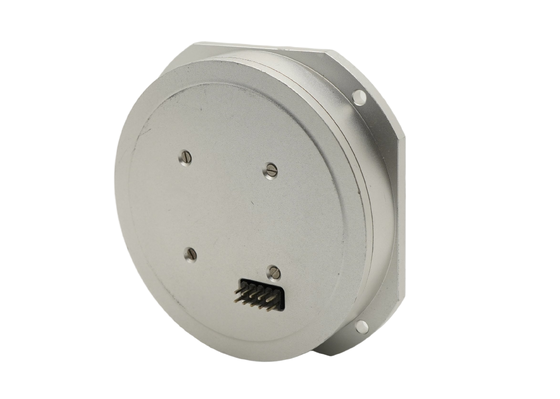

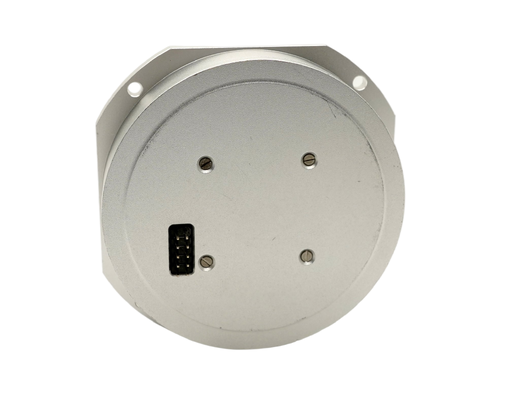

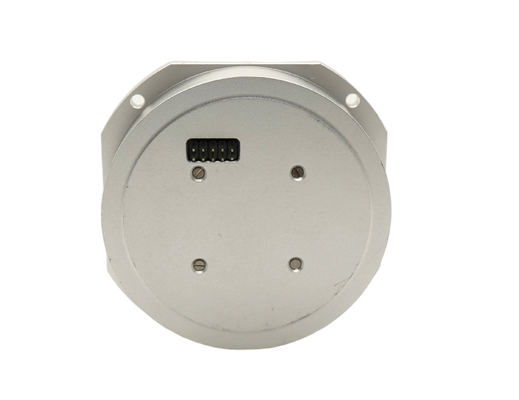

The MFOG-910 is a high-bandwidth fiber optic gyroscope engineered for precision motion measurement and dynamic testing applications. Its 1000Hz 3dB bandwidth captures rapid angular movements with exceptional fidelity, making it ideal for rate table calibration and motion analysis systems.
Utilizing advanced Sagnac effect technology with micro-nano optical devices, the MFOG-910 achieves 0.8 deg/h bias stability and 0.02 deg/rt-h angular random walk. The solid-state construction ensures repeatable measurements over extended testing campaigns without mechanical degradation.
| Parameter | Specification |
|---|---|
| Range (deg/s) | +/-240 |
| Scale Factor (mV/deg/s) | 47+/-5 |
| Scale Factor Nonlinearity (ppm) | <=1000 |
| Zero-Bias Stability (10s, 1 sigma, deg/H) | <=0.8 |
| Zero-Bias Repeatability (1 sigma, deg/H) | <=0.8 |
| 3dB Bandwidth (Hz) | >=1000 |
| Random Walk (deg/rt-H) | <=0.02 |
| Power Supply (V) | 5+/-0.25+12 |
| Power Consumption (W) | <=1.5 |
| Impact Resistance (g) | >=1500 |
| Vibration Resistance (g) | >=70 |
| Service Life (years) | >=15 |
| MTBF (Calculated) | >=100,000 hours |
