| ブランド名: | Firepower |
| モデル番号: | MGC150-P05 |
| MOQ: | 1 |
| 価格: | 1500$ |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union |
| 供給能力: | 500/月 |
| Attribute | Value |
|---|---|
| Range | 150°/s |
| Bias Stability (10 s smoothing) | 0.5°/h |
| Bias @ 25℃ | 15°/h |
| Angle Random Walk | 0.06°/√h |
| Bias Repeatability | 2°/h |
| Scale Factor Repeatability | 30ppmx |
| Non-linearity @ Full Scale (FS) | 100ppm |
| Bandwidth | 30Hz |

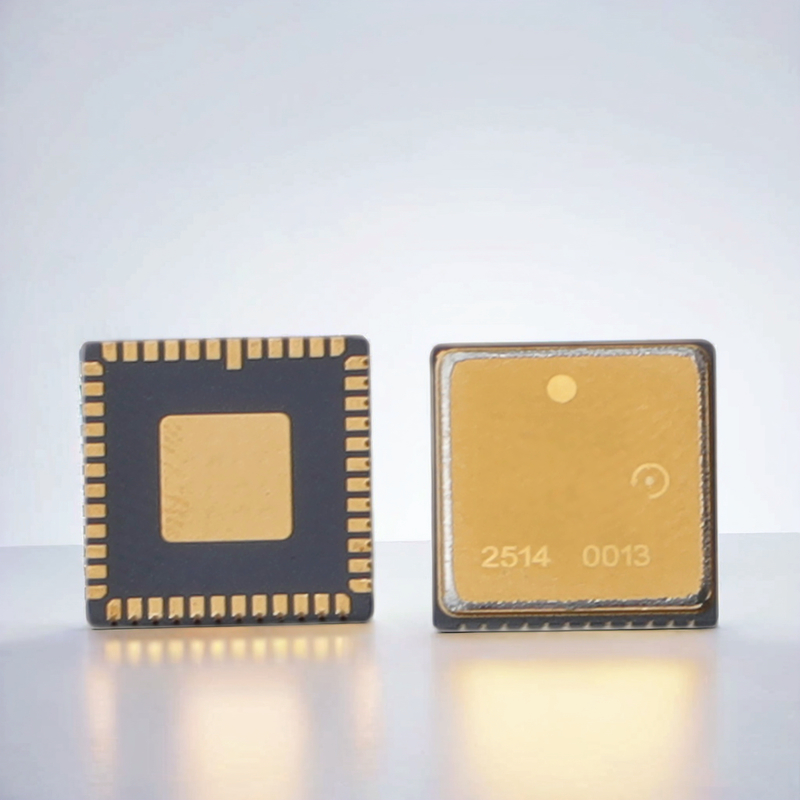

The MGC series single-axis MEMS gyroscope chips are high-performance angular rate sensors designed for precision motion sensing applications. Housed in a compact and robust ceramic package, they feature a fully digital interface that simplifies integration into embedded systems.
With ultra-low bias instability down to 0.5°/h, angle random walk (ARW) as low as 0.06°/√h, and wide bandwidth, the MGC series offers exceptional performance in both dynamic and static environments. Their low noise density and high bias repeatability make them well-suited for applications requiring long-term stability, precision, and reliability.
| Parameter | MGC150-P05 | MGC500-P1 | MGC500-P2 | MGC500-P3 | Unit |
|---|---|---|---|---|---|
| Range | 150 | 500 | 500 | 500 | dps |
| Bias @ 25℃ | 15 | 45 | 45 | 45 | dph |
| Noise @ 10Hz | 0.001 | 0.0012 | 0.0012 | 0.0012 | mdps/√Hz |
| Bias Stability (10 s smoothing) | 0.5 | 1.0 | 2.0 | 3.0 | dph |
| Angle Random Walk | 0.06 | 0.08 | 0.08 | 0.08 | °/√h |
| Bias Repeatability (Weekly) | 2 | 2 | 2 | 2 | dph |
| Scale Factor | 38550 | 11185 | 11185 | 11185 | LSB/dps |
| Scale Factor Repeatability (Weekly) | 30 | 30 | 30 | 30 | ppm |
| Non-linearity @ Full Scale (FS) | 100 | 100 | 100 | 100 | ppm |
| Non-linearity @ 200 dps | 50 | 50 | 50 | 50 | ppm |
| Bandwidth | 30 | ≥100 | ≥100 | ≥100 | Hz |
| G-Sensitivity | 2 | 3 | 3 | 3 | dph/g |
| Vibration Rectification Coefficient @ 6.06 grms | 0.4 | 0.3 | 0.3 | 0.3 | dph/g² |
| Vibration Reliability (Power-on) | 4000g, 0.5ms | ||||
