| ブランド名: | Firepower |
| モデル番号: | NF701A |
| MOQ: | 1 |
| 価格: | 5000$ |
| 支払条件: | LC、T/T |
| 供給能力: | 500/PC |

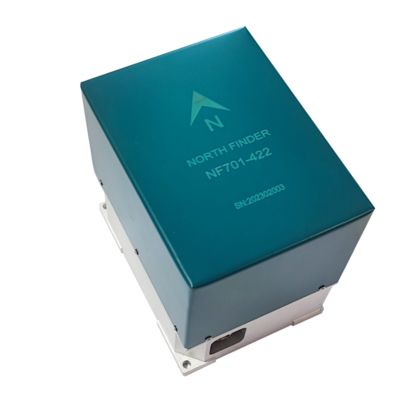

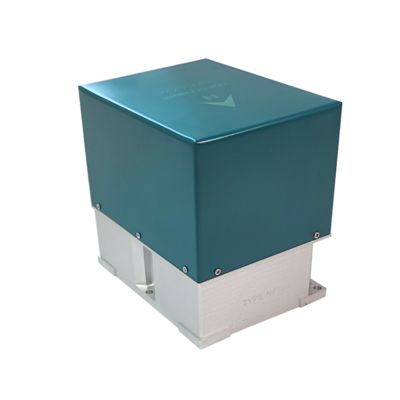

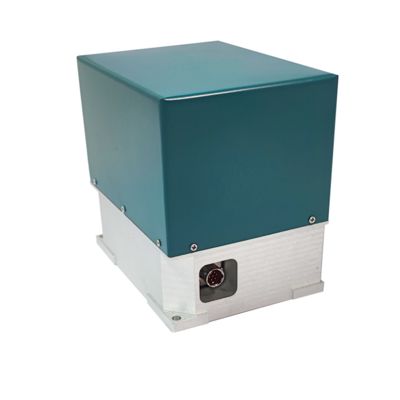

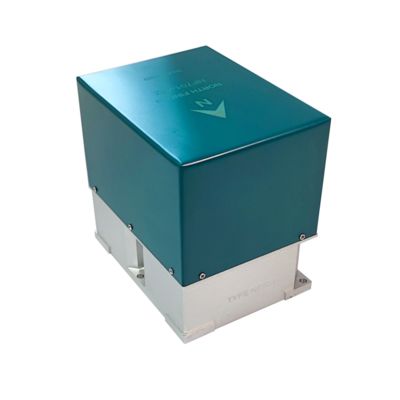

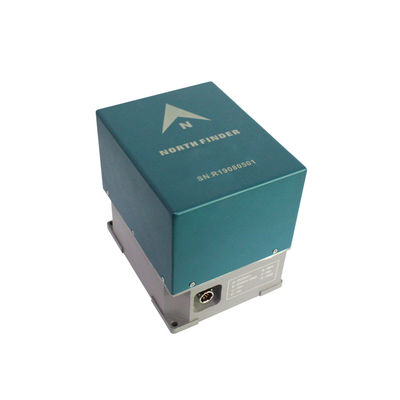

The NF701 Fiber Optic Gyroscope North Finder is a compact, high-precision north-seeking system that determines true north autonomously without GNSS. It measures the Earth's rotation rate through a fiber optic gyroscope and computes azimuth and attitude information for mobile platforms.
Featuring north-seeking accuracy of ≤0.3° (1σ), alignment time under 3 minutes, and RS-422 interface, it integrates a FOG, accelerometer, rotation servo, and embedded controller. The system operates reliably across -40°C to +70°C and is suitable for surveying, drilling, and defense applications requiring rapid, magnetic-independent north reference.
| Plug pin number | Functional definition |
|---|---|
| a | DC12V ~24V |
| b | DC12V ~24V GND |
| c | TD+ |
| d | TD- |
| e | RD+ |
| f | RD- |
| g | GND |
