| ブランド名: | Firepower |
| モデル番号: | 16488HB |
| MOQ: | 1 |
| 支払条件: | LC、T/T |
| 供給能力: | 500/月 |

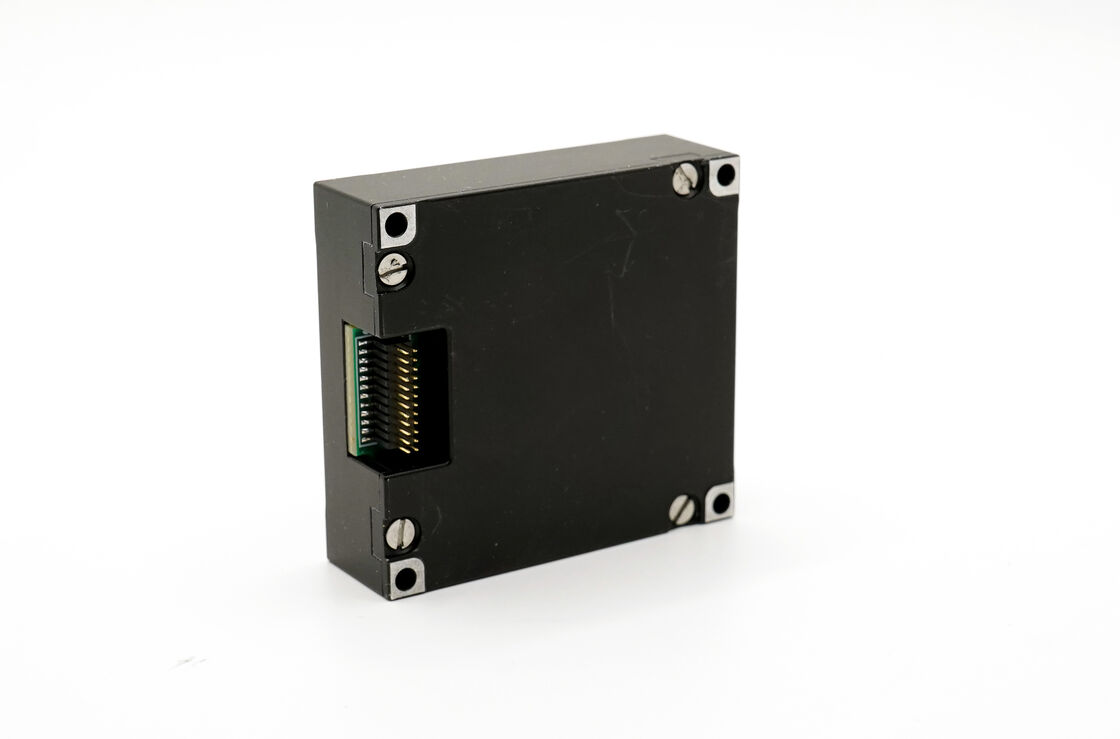

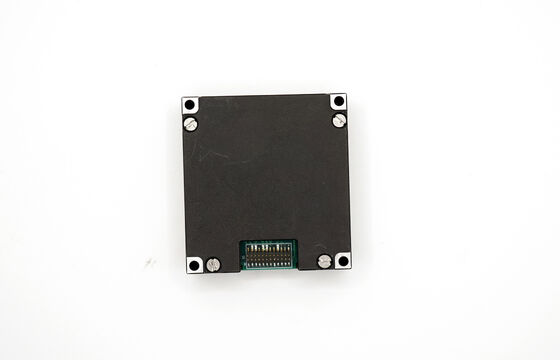

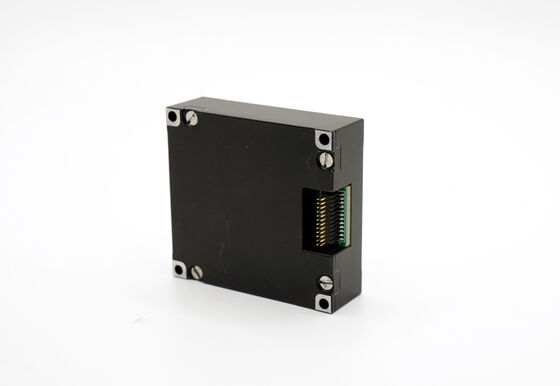

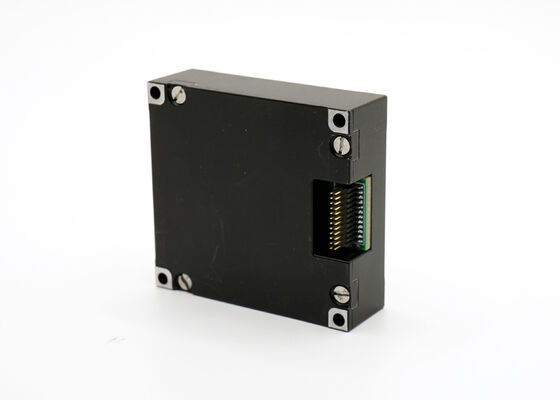

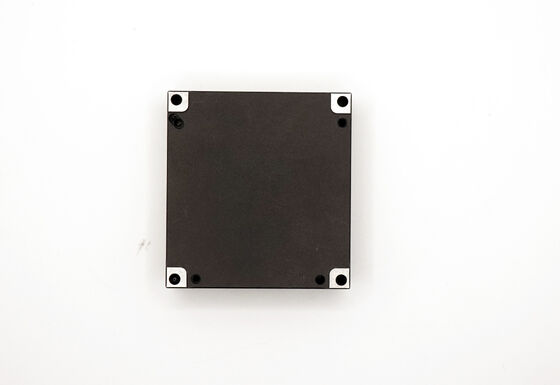

The 16488HB Inertial Measurement Unit (IMU) is a high-performance MEMS-based IMU featuring a three-axis digital gyroscope, accelerometer, and magnetometer. This precision navigation unit offers a dynamic range of ±2000º/s for the gyroscope and ±200g for the accelerometer. With exceptional reliability and environmental adaptability, it's an ideal solution for unmanned motion carriers, mobile communication, and surveying applications. This model serves as a complete replacement for the Adis 16497, providing enhanced accuracy and stability for critical operations.
| Parameter | Test Conditions | Min Value | Typical Value | Max Value | Unit |
|---|---|---|---|---|---|
| Gyroscope | |||||
| Dynamic measuring range | 500 | 2000 | °/s | ||
| Zero bias stability | Allan variance, Z-axis | 0.8 | °/h | ||
| Zero bias stability | Allan variance, X and Y axis | 1.6 | °/h | ||
| Zero bias stability | 10s average (-40℃~+70℃, constant temperature), Z-axis | 3 | °/h | ||
| Zero bias stability | 10s average (-40℃~+70℃, constant temperature), X and Y axis | 6 | °/h | ||
| Zero bias | Zero-bias range, Z-axis | ±0.07 | °/s | ||
| Zero bias | Zero-bias range, X and Y axis | ±0.2 | °/s | ||
| Zero bias change in full temperature range | Z-axis | ±0.02 | °/s | ||
| Zero bias change over temperature | X and Y axis | ±0.06 | °/s | ||
| Scale factor accuracy | Z-axis | 0.3 | % | ||
| Scale factor accuracy | X and Y axis | 0.6 | % | ||
| Angular random walk | 0.15 | °/√hr | |||
| Noise density | 0.001 | °/s/√Hz | |||
| Accelerometer | |||||
| Dynamic measuring range | 16 | 200 | g | ||
| Zero bias stability | Allan variance | 0.06 | mg | ||
| Zero bias stability | 10s average (-40℃~+70℃, constant temperature) | 0.4 | mg | ||
| Zero bias range | 2 | mg | |||
| Scale factor accuracy | 0.5 | % | |||
| Noise density | 0.025 | mg/√Hz | |||
| Magnetometer | |||||
| Magnetic field range | Brg,xy | ±13 | gauss | ||
| Heading accuracy | 30 μT horizontal geomagnetic component, 25℃ | ±2.5 | deg | ||
| Electrical Characteristics | |||||
| Voltage | 3.0 | 3.3 | 3.6 | V | |
| Power consumption | 1.5 | W | |||
| Structural Characteristics | |||||
| Size | 47*44*14 | mm | |||
| Weight | 50 | g | |||
