| ブランド名: | FIREPOWER |
| モデル番号: | MFOG103 |
| MOQ: | 1 |
| 価格: | 500$ |
| 支払条件: | LC、T/T |
| 供給能力: | 500/月 |

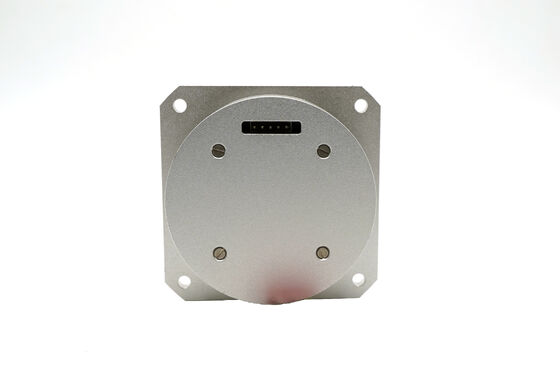

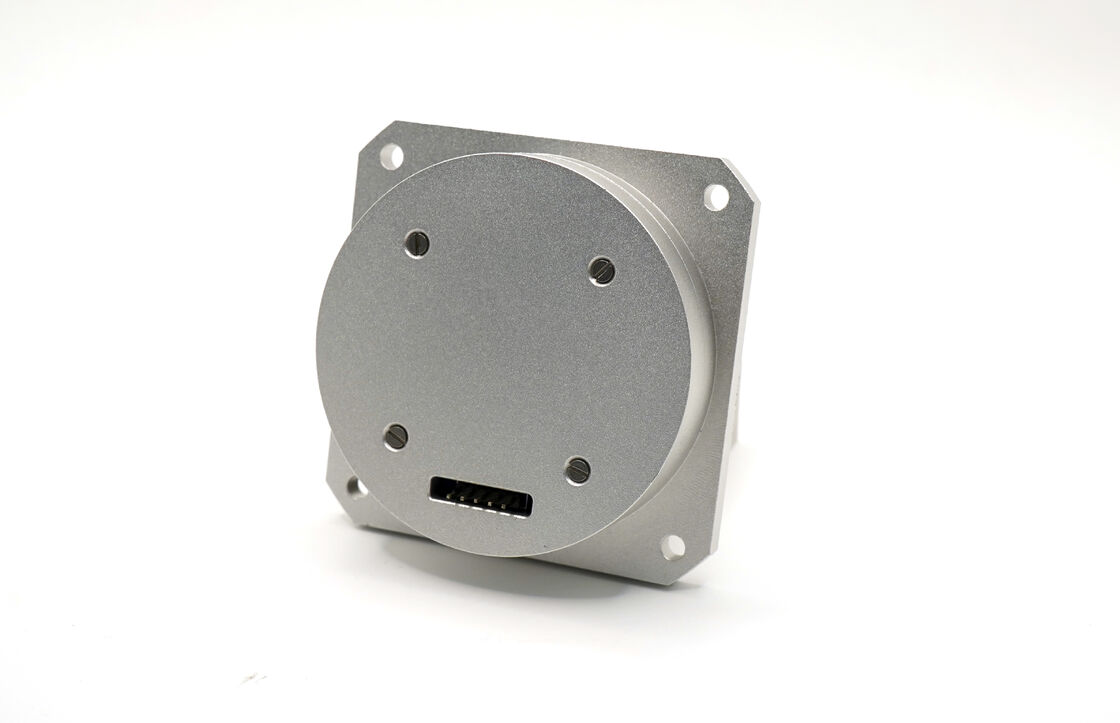

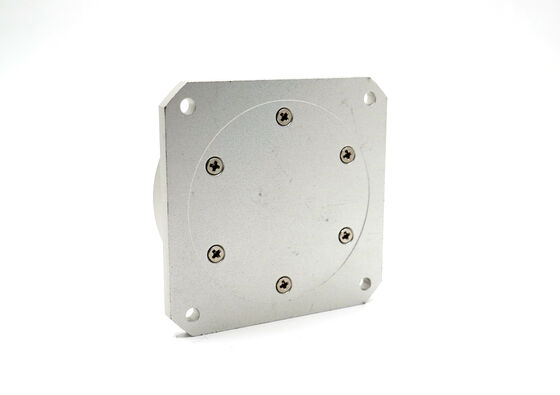

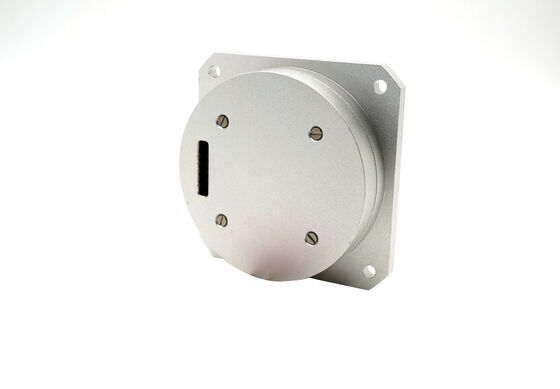

The MFOG-103 micro-nano fiber optic gyroscope is a high-performance angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it incorporates multiple micro-nano fiber optic devices and measures angular rate by detecting, processing, and feedback-controlling the phase difference generated by two counter-propagating light beams within the fiber coil.
The product features a simple and robust structure with no moving or wearing parts, offering fast start-up, compact size, light weight, and high reliability. The MFOG-103 is suitable for attitude measurement and control applications across various carrier platforms.
| Serial Number | Parameter | Performance Indicators |
|---|---|---|
| 1 | Range (°/s) | ±350 |
| 2 | Scale Factor (mV/°/s) | 6±0.6 |
| 3 | Zero-bias Stability (10s, 1σ, °/H) | ≤1 |
| 4 | Zero-bias Repeatability (1σ, °/H) | ≤1 |
| 6 | 3dB Bandwidth (Hz) | ≥1000 |
| 7 | Random Walk (°/√H) | ≤0.02 |
| 8 | Power Supply (V) | 5+0.25 |
| 9 | Power Consumption (W) | ≤1 |
| 10 | Impact (g) | ≥1500 |
| 11 | Acceleration (g) | ≥70 |
| 12 | Service Life (years) | ≥15 |
| 13 | MTBF (Calculated Assessment) | ≥100000 |
